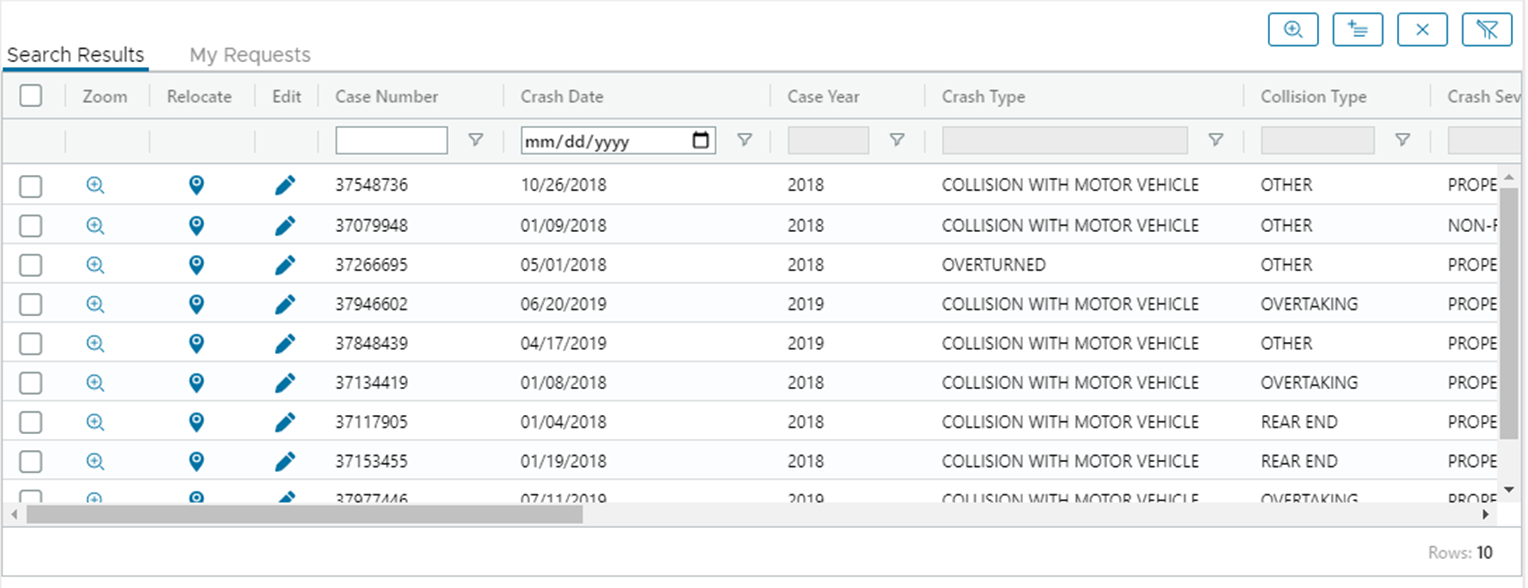

Viewing the Search Results Grid

Search Results are displayed in a robust, selectable and filterable grid display within the "Search Results" tab under the map panel. Each column is filterable and sortable. Each record in the search results grid is dynamically synced with the interactive map display (see Zoom in below).

Basic Column Operations

•Reordering - The column headers can be used to reorder the columns by holding the mouse pressed within a column header and dragging the column left or right, releasing at the desired position

•Resizing - Columns can be resized wider or narrower by holding the mouse pressed on the vertical splitter between columns, sliding left or right, and releasing

•Filtering - At the top of each column (under the column name) is a filtering row where filter criteria can be added. Text fields have a white textbox, fields with a domain governing the entries in the field appear gray, but have selectable options when clicked.

•Sorting - Each column name can be clicked to establish ascending or descending sorting. The first time clicked will sort the column in ascending order. Clicking again will change to descending. The current sorting direction will be indicated by a upward or downward facing arrow next to the column name.

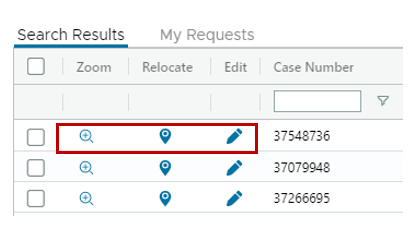

Row Tools

In addition to a selection check box (to select individual records for subsequent processing), each row in the grid has three tools available (icons from left to right):

•Zoom - Zooms the map to the location of the crash

•Relocate - Allows the user to relocate the crash

•Edit  - Allows the user to edit the attributes/data associated with the crash

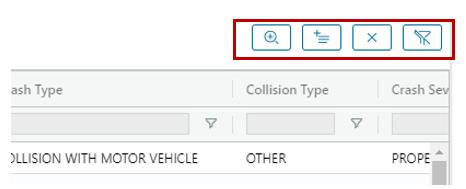

Grid Tools

A series of several buttons appear above the grid control that provide options for taking bulk-actions on cases in the Search Results (or other) grids. Cases are selected for these bulk-actions using the checkbox to the far left.

•Zoom To All (): Zooms the Map in the Main Content Panel in the upper right of the screen to the location of the selected Cases.

•Add to DOT Queue ():  Adds all selected cases as Requests to the DOT Queue for Editing or relocation.

•Remove from List (): When a user has added many Cases to the Search Results by Loading a Case List, there may end up being Cases not relevant for further consideration for Editing. To make review easier, selected Cases can be removed from the search results with this button so that the remaining cases can be focused on more easily.

•Clear all filters (): If the user has applied multiple filters to the grid, this button will remove

 Note for Commercial and SafetyNet Users

Commercial and SafetyNet Users will have a slightly different view of the Search Results grid

•First, if a vehicle level search was performed, the grid will contain one row per vehicle

•Secondly, in addition to the Search Results grid, additional tabs will be available for "Commerical Queue" and "Safety Net Queue"

•Additional differences in the row tools and grid tools are described below for each user role

Differences for Commercial Users

•View Tool - A View tool will be available in every row in the search results grid which allows the user to view/display the crash details in the form panel for review

•Add to Commercial Queue Button - An extra button will appear above the grid allowing the user to add selected vehicles from the search results grid to the Commercial queue for subsequent processing

Differences for SafetyNet Users

•Edit Tool - A Edit tool will be available in every row in the search results grid which allows the user to edit the core crash details in the form panel for review

•Add to SafetyNet Queue Button - An extra button will appear above the grid allowing the user to add selected vehicles from the search results grid to the SafetyNet queue for subsequent processing
